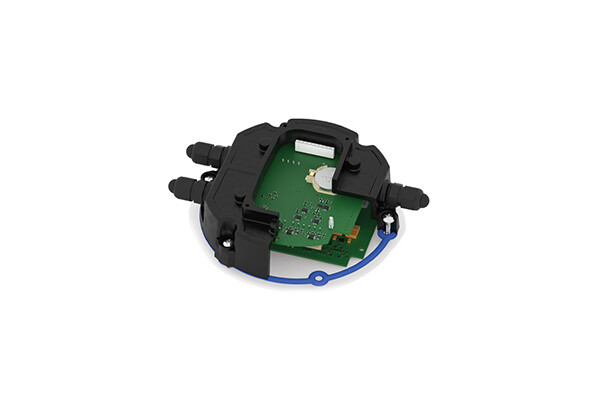

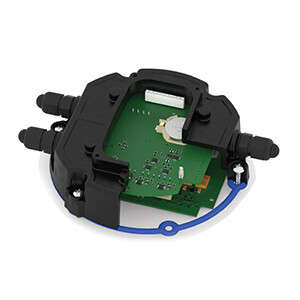

Flomec QSI Communication Module

Flomec QSI Communication Module

The FLOMEC® QSI communication module is a multi-functional electronics unit designed to enhance product functionality and provide fully-featured communication protocols and process output signals for FLOMEC® meters, while also providing data-logging functionality.


A unique feature of the QSI is that programming is simple and can be done by using the FLOMEC® App via Bluetooth® wireless interface technology.  In-field firmware updates are easy with the QSI.

The QSI Communications Module is the perfect product when a local display is required with the ability to communicate flow data via MODBUS or BACNET serial communications.



Features & Benefits

The QSI Communications Module is the perfect product when a local display is required with the ability to communicate flow data via MODBUS or BACNET serial communications.

  • Calculates flow and totals from pick-up coil or digital input pulses
  • Measures temperature from PT100 RTDs
  • BTU (heat) meter calculates energy from flow and temperature inputs
  • Data logger - stores all measured and calculated variables on internal flash memory
  • Access Data Logger information through FLOMEC® app
  • Communication options available: Modbus® RTU and BACnet™ MS/TP
  • Built-in Bluetooth® wireless technology
  • External Programming FLOMEC® App available for mobile devices
  • Receive in-field firmware updates
  • Standard process outputs: Pulse out and 4-20mA



Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter or totaliser version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
