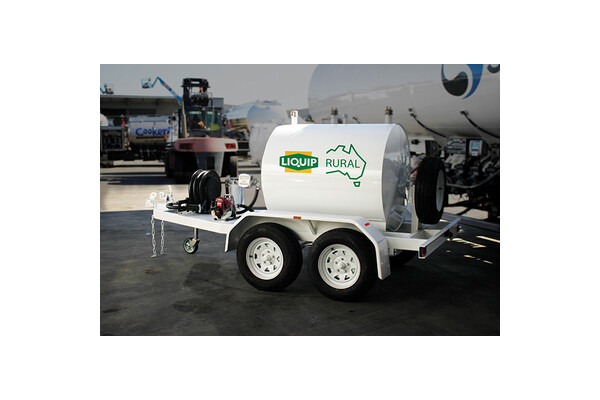

Liquip Rural Refuelling Trailer – made to tow anywhere
It's a welcome return to Australian ingenuity and Australian made with the all new Liquip Rural Refuelling Tank Trailer.
Meet the latest addition designed to make fleet refuelling easy – the Liquip Rural Refuelling Tank Trailer. Designed by engineers of fuel storage and dispensing equipment, this new trailer exhibits the very best in Australian know-how, design and local components.
Farm Fuel Trailers
Our farm fuel trailers are designed with durability and efficiency in mind. We understand the importance of reliable fuel transportation on the farm, which is why our trailers are built to withstand the rugged conditions of agricultural work.
Farm Fuel Tanks for Sale
When it comes to farm fuel storage, having the right tanks is essential. Liquip Victoria offers a range of farm fuel tanks for sale, providing you with options that suit your farm's specific requirements. Our tanks are built to last, ensuring that your fuel is stored safely and efficiently.
It offers users:
► A simple and easy to use fuel dispensing system, that safely and efficiently transports fuel to where it’s needed
► A robust chassis for on and off-road use, built to withstand demanding Australian work environments and conditions
► ADR and registration capability for on-road use
► Customisation ability to meet specific needs or requirements
► 1000 L, 1250 L and 2000 L tank storage capacities
► Australian designed and made, utilising a great range of Australian parts and products
Dispensing is easy as well, with three standard systems to choose from. These are complete turn key solutions so you can tow away, fill and start refuelling. (See below).
DOWNLOAD THE BROCHURE
Our Liquip Rural Refuelling Tank Trailer is proudly Australian designed and made
To place this iconic logo on a product you sell and claim what it says you need to apply for permission and meet a number of important criteria guidelines. We are proud say this product has successfully meet the criteria. Indeed, not all parts and materials fitted and used on these trailers are manufactured here, but where possible we've made the effort to source parts from Australian owned businesses or are Australian made. We've noted them below in the specifications list.For those interested, The Australian Made Website holds a wonderful list of Australian Made products, should you wish to support other local manufacturers and Australian businesses like ours.

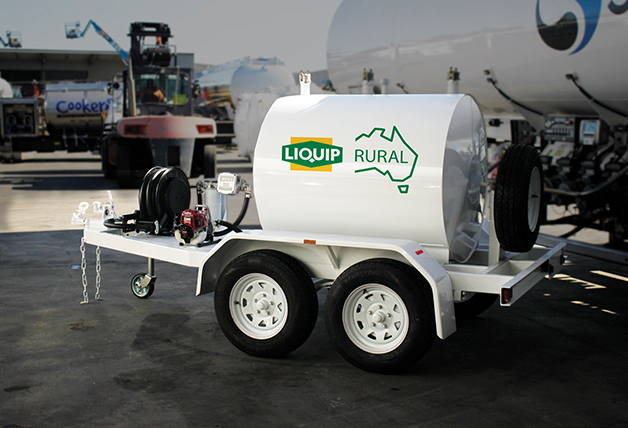

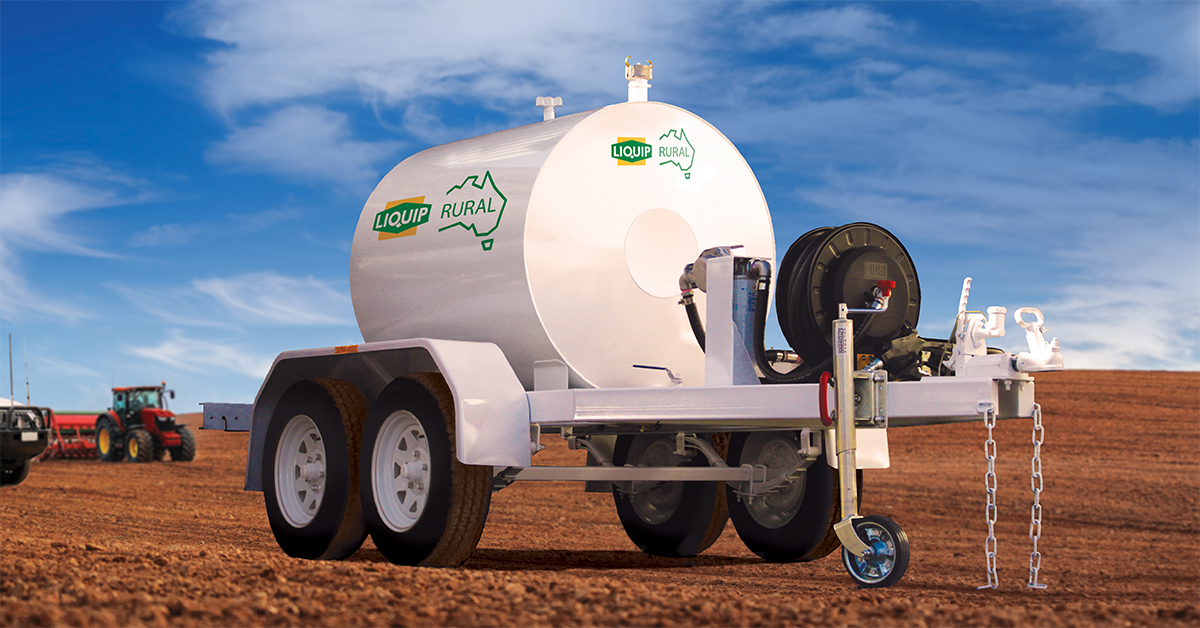

Liquip Rural Refuelling Tank Trailers
Here's what's included standard in this tank trailer design, the sizes available and custom options you can add.
Tank Specifications
► Heavy Duty Australian made steel plate tank – with baffles (Ford white 2 coat paint finish)► 1000 L, 1250 L and 2000 L capacities
► Isolation Ball Valve – 1ó" BSP tank outlet
► Drain Valve – 1" Ball value with cap

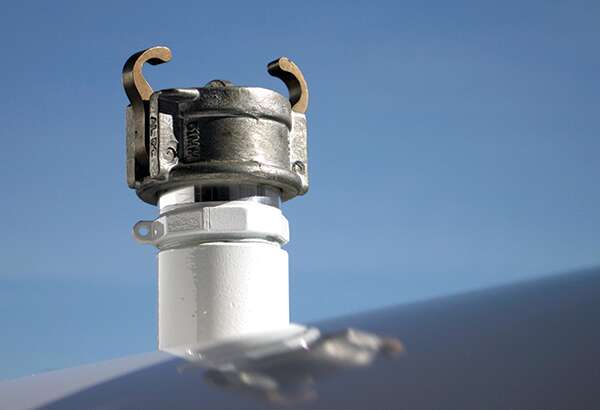

► Fill point – Tank top with camlock adaptor & cap
► Mushroom Vent – down draft with wire mesh filter
Chassis Specifications:

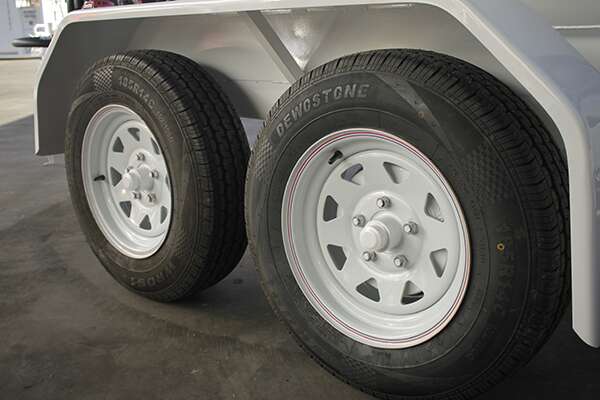

► Heavy Duty 100 x 50 mm boxed trailer frame► Australian made 14 inch white H/D wheel rims
► 14 inch on-road tyres
► Spare wheel mounted to rear of trailer
► Hydraulic braking system
► Australian made axles and brakes

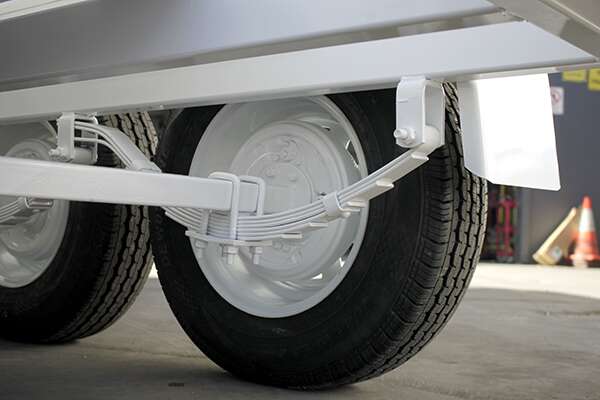

► Australian made tandem spring set suspension
► Heavy duty easy lift retractable swivel jockey wheel (200 mm wheel)
► 50 mm Ball Hitch assembly (HD cast & bolted to top plate)
► One piece mudguards
► Ford white 2 coat paint finish
► ADR compliant LED trailer lighting (Incl. number plate LED light, full wire harness)
► Flat 7 pin connector for trailer lighting system
► Full reflector kit, meeting ADR requirements
► 2 x drawbar chains – tow compliant.
Refuelling Trailer Sizes
► 1000 Litres► 1250 Litres
► 2000 Litres

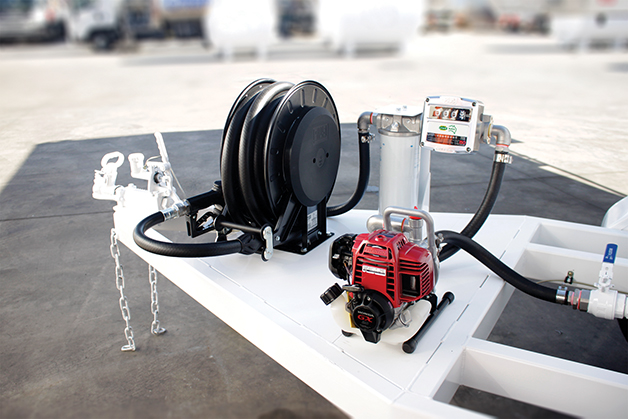

Pumps, Meters and Fuel Management Systems
PETROL OR DIESEL DRIVEN PUMP PACKAGE
Pump

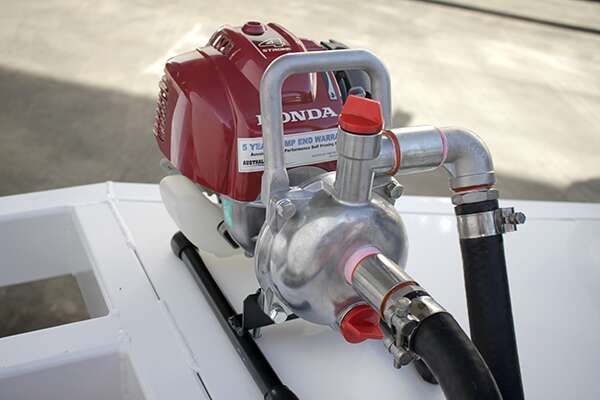

► Yanmar Diesel or Honda 4-stroke Petrol engine (5 year warranty)
► Centrifugal 120 L p/m Pump in marine grade casing coupled to above Honda engine (Incl. Diesel seal kit and carbon/ceramic seal)
► Robust impeller with 1" outlet
► Fast self priming design

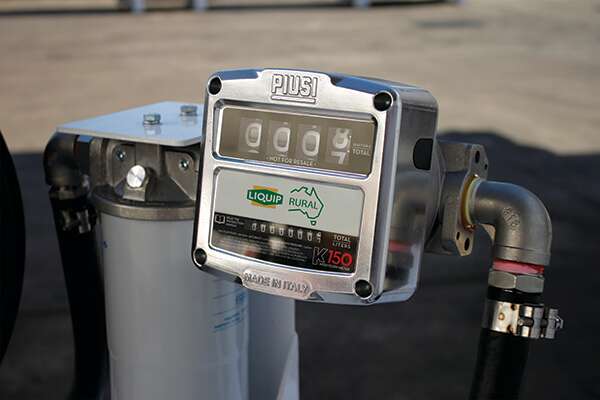

Meter
► 120 L p/m, 1" inlet and outlet
► Resettable register with totaliser, aluminium casing

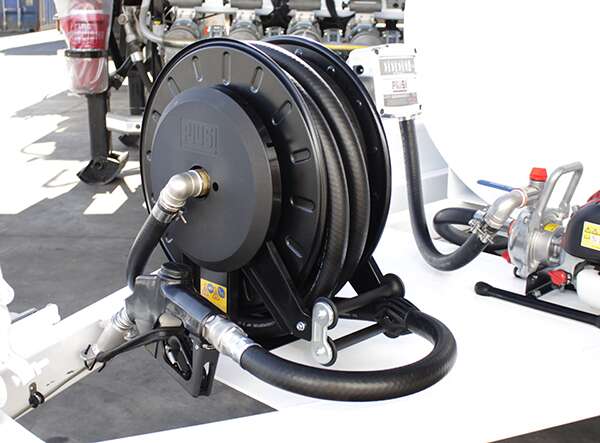

Hose Reel (10 meter)
► 1" Heavy Duty hose on Spring Rewind H/D Hose reel, swaged hose ends 1" BSP
► Donaldson Filter – Water and Particulate (10 micron)

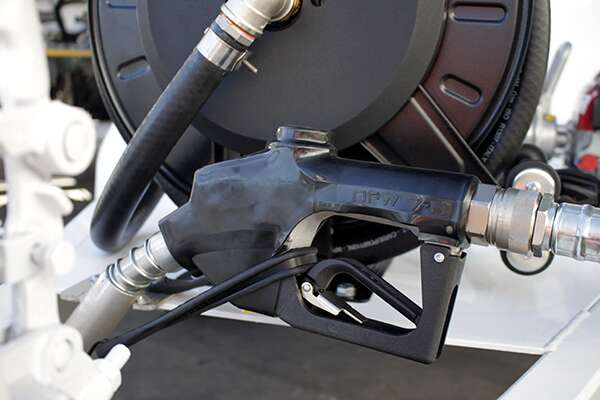

► OPW Auto Nozzle OPW (1" spout with H/D swivel)
► Nozzle holster with tie down flexi-strap
► Package secured to front of trailer on heavy duty plate
12 VOLT DC PUMP PACKAGE
Pump
► 12V / 24V Bi Pump
► 80 L p/m
► Positive displacement pump
► Wiring harness with battery clamps
► Wiring option to Anderson Plug for vehicle / equipment power supply.
Meter
► 120 L p/m, 1" inlet and outlet
► Resettable register with totaliser, aluminium casing
Hose Reel (10 meter)
► 1" Heavy Duty hose on Spring Rewind H/D Hose reel, swaged hose ends 1" BSP
► Donaldson Filter – Water and Particulate (10 micron)
► OPW Auto Nozzle OPW (1" spout with H/D swivel)
► Nozzle holster with tie down flexi-strap
► Package secured to front of trailer on heavy duty plate
Customised options
► Battery driven pump packages► More powerful pump packages
► Fire extinguishers
► Manual high flow pumps
► Diesel driven pumps
► Electric braking system
► Alternate hitch systems: Pintle hooks, fixed, swivel, larger diameter ball hitches
Certifications
► Australian Design Rules (ADR) Approved
Did you know?
When you buy an SBT from Liquip Victoria, you are not just buying a tank, you’re buying a complete bulk liquid storage solution. Not to mention that we offer a complete turnkey solution as part of the purchase.
This includes:
► Selection and advice on the best suited tank solution
► Custom tailored pump dispensing and monitoring system design with multiple options to choose from
► Fit-out of pump dispensing equipment and systems onto the tank
► Delivery, installation and set-up of the tank on-site, along with commissioning
► Option of on-going servicing and maintenance of tank on-site.
Interested in learning about the benefits and key advantages of on-site bulk liquid storage? Then read our article, 'Seven ways on-site bulk liquid storage saves time and money'
To discover more about our complete range of HOST Refueling Trailers please contact a member of our sales team. Now you can cost-effectively dispense diesel in a more productive and efficient way.
