Accuracy
±1% of Span (Grade A ANSI B40.1).
Ranges

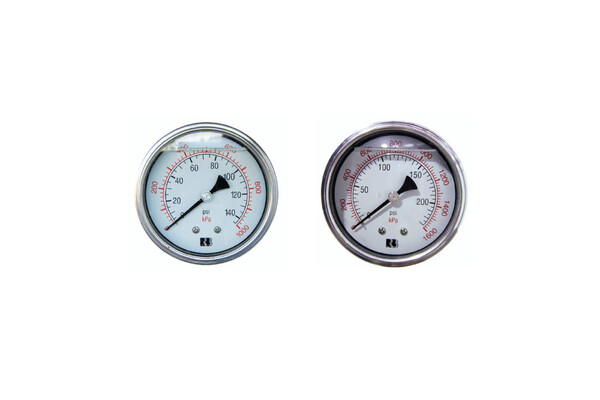

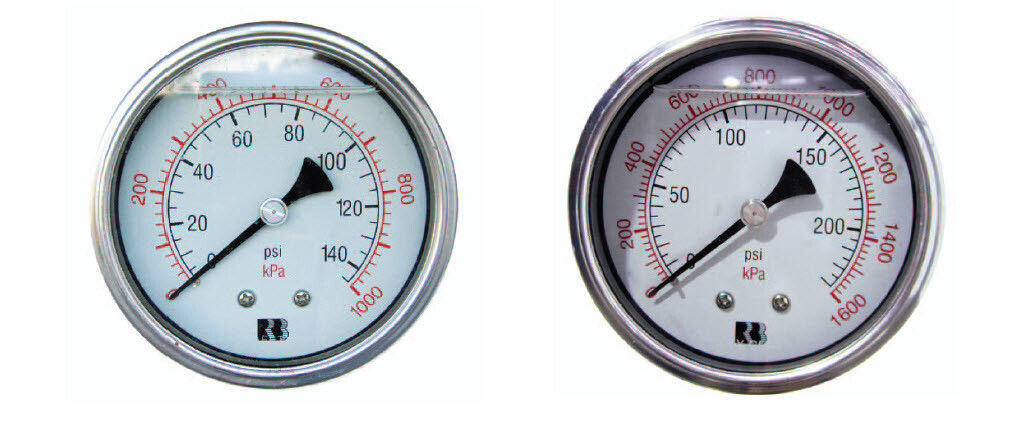

0-1,000 kPa/psi and 0-1,600 kPa/psi.
Operating Temperature
Ambient = -20oC to 60oC.
Media: max. +85oC.
Connection
Material: 316L Stainless Steel welded to case.
Low back mount (LBM) 1/4" BSPT.
Bourdon Tube
Material: 316L Stainless Steel.
30" Hg to 800 psi by C-type.
Movement
Stainless Steel
Dial
White painted aluminium
Pointer
Micro Adjustable
Case
304 Stainless Steel with polished twist lock ring, with panel mount clamp.
Ring
Bayonet SST ring with front flange.
Window
Tempered glass, sealed to case with gasket suitable for silicone.
