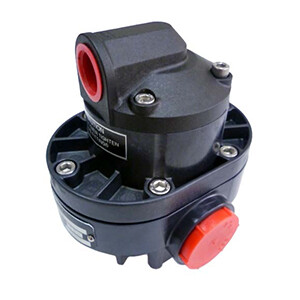

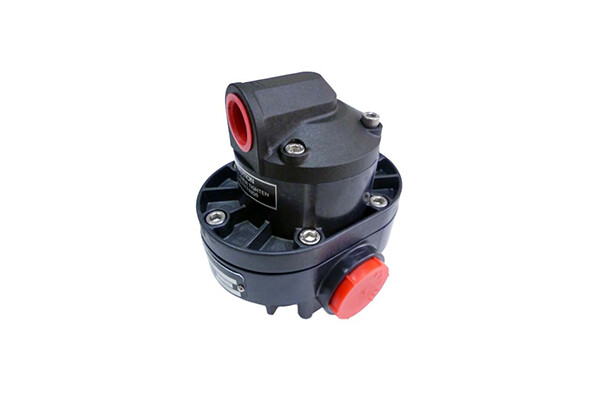

Flomec OM Series Oval Gear Chemical Meter

Flomec OM Series Chemical Oval Gear Flow Meter

TheThe FLOMEC® OM025 PPS (Ryton) Oval Gear meters are an exceptionally cost-effective alternative to a stainless-steel meter when chemical resistance is critical, but pressures and temperatures are low.


With internal components constructed entirely from PPS (Ryton) and Alumina ceramic the OM025P Chemical Meter is well suited to precise measurement of non-potable water, fertilisers, herbicides, diesel exhaust fluid, and a wide range aggressive, or corrosive chemicals where standard engineering metals are not suitable.




Sizes & Applications

Sizes

  • Sizes 1” (25mm) Pipe Size for Chemical Applications | Flows from 10L/min – 150L/min with Pulse-Out or LCD Display

 Applications

OM Series Oval Gear Chemical flow meters are an economical solution for measuring an aggressive or corrosive liquid.
Please confirm chemical compatibility before purchase

  • Water (non-potable, demineralised, RO)
  • Glycols / Anti-Freeze
  • Diesel Exhaust Fluid (DEF / Adblue)
  • Fertilizers
  • Herbicides
  • Insecticides
  • Also suitable for many non-flammable fuels and oils
Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Flomec Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view all product specifications and technical data please download the PDF Datasheet from the resources section.
